Valve Body Manufacturing · Since 2005
Most suppliers only cast, or only forge. We do both, in-house — so the process is chosen for what the valve body actually has to hold, from municipal water to 70MPa hydrogen.
Processes In-House
Engineers & Machinists
RFQ Turnaround
FIG. 01–02
Both processes, one factory
Sealing surfaces & threads finished on site
Certified quality management
Tooling / process / machining / shipping
No CAD file? We build one
Cast valve bodies — sand-cast or investment-cast — carry an inherent risk: microscopic porosity, shrinkage cavities, or slag inclusions trapped inside the metal as it cools. Most valves never notice. But a body holding a small gas molecule, extreme pressure, or a zero-fault-tolerance system will find every one of them.
“Casting builds the shape. Forging builds the density.” — We choose the process based on what your valve actually has to hold: water, or hydrogen at 70MPa.
Sand · Investment · Die Cast
Shape formed from molten metal cooling in a mould. Efficient for complex geometry and large or high-volume bodies — the right call whenever a small internal void isn’t a safety issue.
High-Temp Plastic Deformation
Shape formed by compressing solid metal under heat and pressure. Grain flows continuously through the part — no internal voids, higher strength, better fatigue life.
Across every industry we serve, these are the four conditions that push a valve body from “cast is fine” to “must be forged.”
Hydrogen’s molecule is small enough to migrate through a cast body’s microscopic pores (embrittlement risk). 70MPa refueling stations, on-vehicle tanks, and ultra-pure semiconductor gas lines require forged stainless or specialty-alloy bodies.
FIG. 03
Hydrogen tank valve set
Deep-sea equipment valves, control valves on 10,000-ton hydraulic presses, and supercritical steam valves in thermal power plants. Cast bodies risk deformation or rupture under these loads.
Primary steam isolation valves in nuclear plants, fuel supply valves in rocket engines. Reliability requirement is 100% — a casting defect causing a micro-leak isn’t an acceptable risk.
Medical gas systems, biopharmaceutical processing, semiconductor UHP gas valves. Forged bore walls take an electrochemical mirror polish with no hidden pores to trap bacteria or particulate.
A gas cylinder valve body sits at the exact intersection of everything forging solves for: high internal pressure, zero acceptable leak rate, and — in breathing applications — a direct line to human life safety.
FIG. 04
Precision-polished cylinder valve

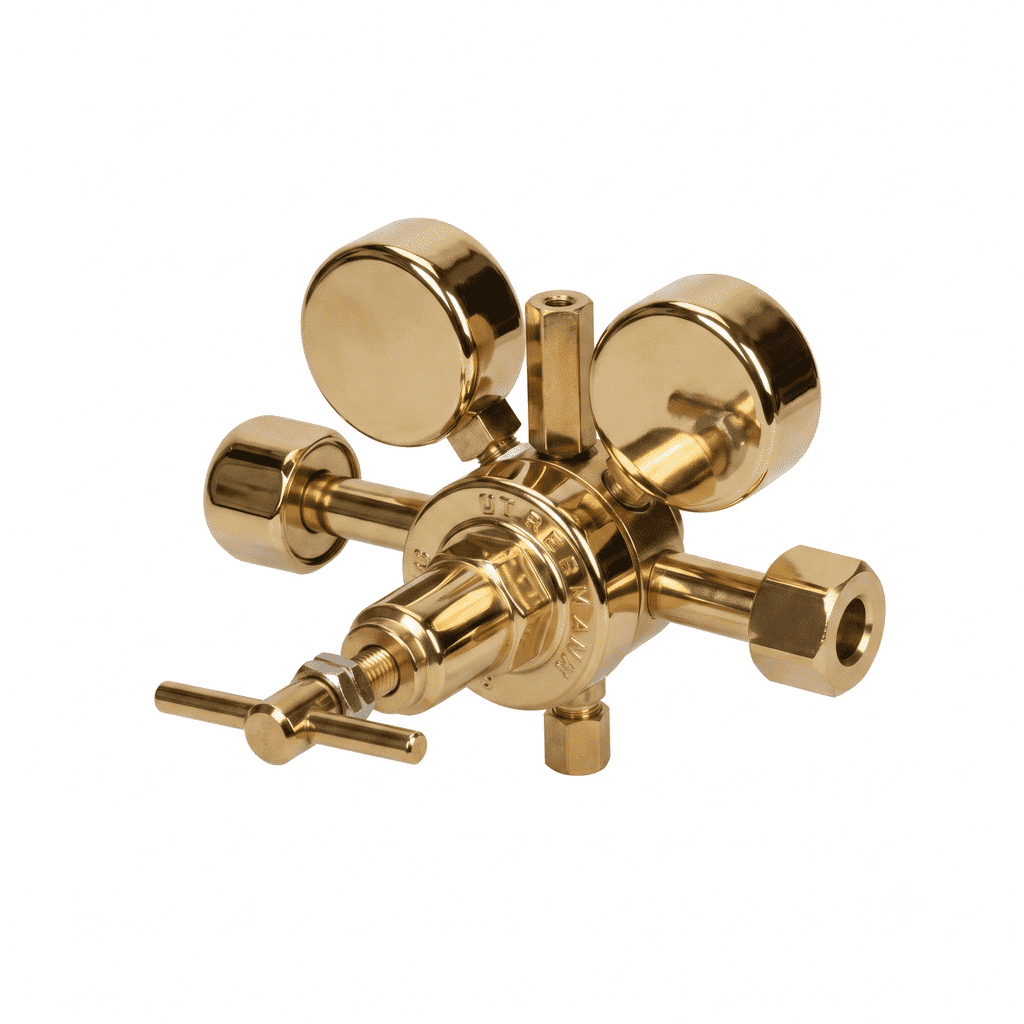

FIG. 05
Forged brass regulator body
Before a mould or forging die is cut, high-pressure and safety-critical valve body designs go through finite-element stress analysis — checking wall thickness, bonnet loading, and stress concentration at every fillet and boss.
FIG. 06
Valve cover — von Mises stress distribution
Confirms minimum wall sections meet pressure rating before a single part is cast or forged.
Identifies fillets, bosses, and thread roots where fatigue cracks would start first.
Simulation results are validated against real inspection data from our Quality Control lab — CMM, X-ray, and spectrometry.
From a microfluidic valve body the size of a fingernail to a multi-ton pipeline gate valve body — covered by casting, forging, or in-house CNC machining.
Highest Value-Add
Microfluidic valve bodies for IVD diagnostics, gene sequencers & precision medical instruments; instrument/needle valve bodies machined from hex bar or red-forged for lab & petrochemical sampling; pneumatic/solenoid valve bodies (manifold blocks, 5/2-way directional valves) in extruded or die-cast aluminum.
Zero Dead-Leg
Sanitary diaphragm/butterfly valve bodies for food, dairy & biopharma — 304/316L stainless, Ra < 0.4μm bore finish; vacuum valve bodies — gate & angle valves — for semiconductor vacuum chambers and research equipment.
Volume & Cost
HVAC & plumbing valve bodies — gate, ball, check & balancing valves in forged brass, cast bronze, or cast iron; fire protection valve bodies — wet alarm, deluge & hydrant valves, typically ductile iron; gas pipeline valve bodies — municipal ball valves & regulators with anti-static, fire-safe design.
FIG. 07
Steam trap bodies
Free-floating ball type steam traps — a Tier 3/5 crossover: high-volume cast iron bodies (fire & plumbing scale) doing a special-function job (automatic condensate drainage in steam networks).
Hundreds of KG to Tons
Petrochemical pipeline valve bodies — large gate & flanged ball valves, carbon or stainless steel, sand/investment cast with forge-welded critical sections; marine & offshore valve bodies — duplex stainless, aluminum bronze or titanium for seawater resistance; slurry & mining valve bodies — knife-gate & pinch valves for abrasive media.

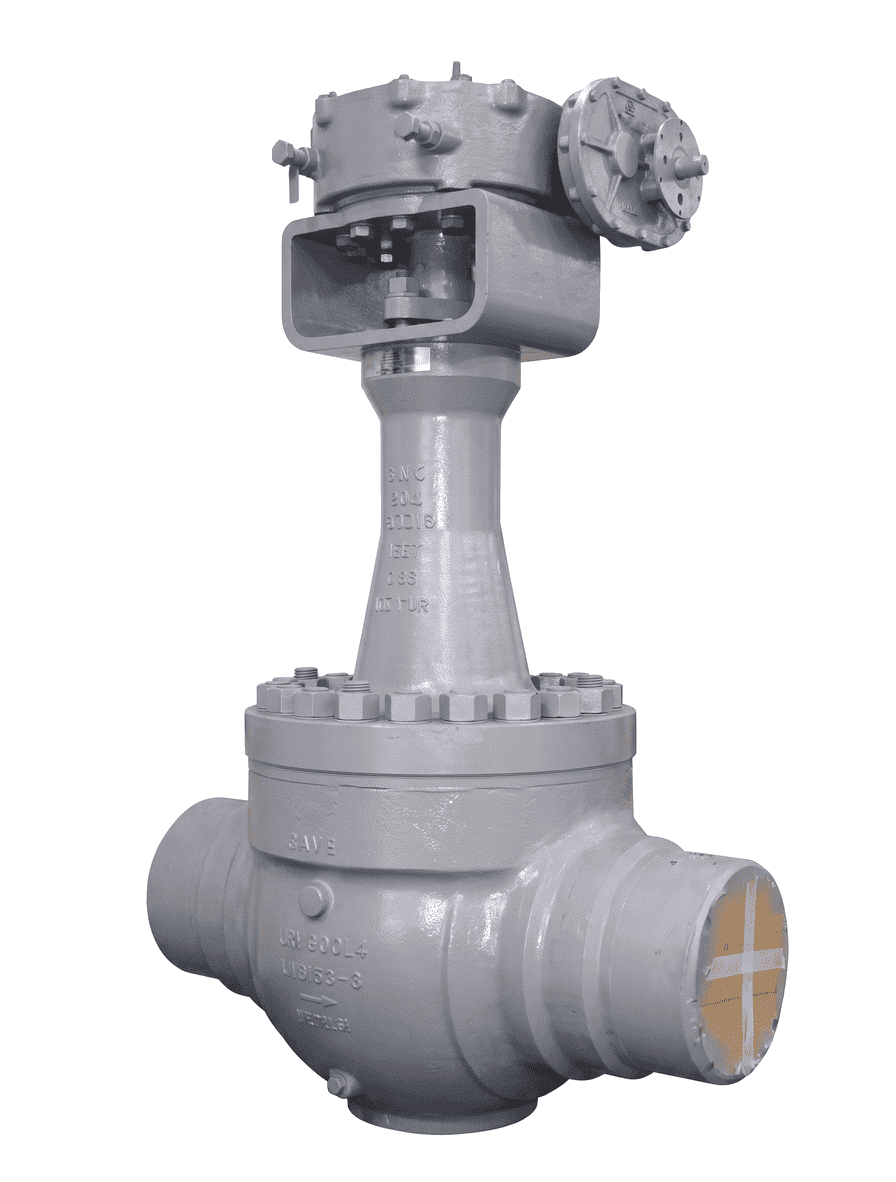

FIG. 08
Cryogenic / pipeline gate valve
Cryogenic & LNG valve bodies also live in this tier — heavy flanged gate valves engineered for aerospace and liquefied-gas service at ultra-low temperature.
Application-Specific
Safety/pressure-relief valve bodies for vessels & boilers; steam trap bodies; semiconductor UHP gas valves; hydrogen station & vehicle high-pressure valves; aerospace & LNG cryogenic valves; transmission valve & ride-control (suspension) valve bodies with complex internal flow paths; pneumatic tool valves (spray-gun / airbrush, wheel-clamping tire-service valves); and specialty distribution valves (lubrication-system distribution valves, combination air-release valves for water utilities).
Every RFQ is reviewed personally by our engineering team before quoting.
01
CAD file, standard reference (DIN/CGA/ISO), or a sample part. No drawing? We build one from a photo and dimensions.
02
We recommend the process based on pressure, media and service environment; you approve before production starts.
03
Broken down by mould/die, casting or forging, machining, and shipping — no bundled black-box pricing.
04
First-article sample for dimensional and pressure-test sign-off.
05
In-house CNC finishing of sealing surfaces and threads, with material traceability documentation.
Casting and forging capability under one roof, so the process is chosen for the application — not for whatever one shop happens to offer.
Valve bodies leave finished, with sealing surfaces and threads machined in-house — not shipped to a second vendor.
Every quote breaks down mould/die, casting or forging, machining, and shipping costs separately.
From a short run of precision micro valve bodies to bulk fire-protection valve orders — no rigid minimum.
Build to your drawing, or bring us a concept and we help develop it into a manufacturable design.
Detailed, engineer-reviewed quotes, typically within 24 hours.
A valve body rarely uses one process alone. Explore the individual capabilities behind this page.
High-density bodies for hydrogen, medical & UHP gas valves
Cost-efficient bodies for HVAC, fire & pipeline valves
Complex geometry, tighter tolerance cast bodies
Sealing surfaces, threads & bore finishing in-house
CMM, X-ray & spectrometry verification for every batch
Flange welding & assembly for large valve structures
Depends on the medium and pressure. Hydrogen, breathing gas, or roughly 200 bar+ / zero-fault-tolerance service usually means forging. Lower-pressure water, HVAC, or high-volume commercial valves are more cost-effective cast — we’ll advise honestly during the RFQ review.
Yes — brass or stainless steel forged bodies machined to DIN, Yoke/A-clamp, or CGA standards, with oxygen-clean bore finishing.
Yes, in-house. Sealing surfaces, threads, and bores are CNC-finished to the tolerances your standard requires — this step is never outsourced.
Carbon steel, stainless steel (304/316L, duplex), brass, bronze, ductile/grey iron, and aluminum, depending on the valve body’s service environment.
No fixed minimum — quoted on part complexity and tooling cost, whether that’s a short precision run or a bulk industrial order.
Yes — safety-critical geometries go through finite-element stress analysis first, cross-checked against real inspection data from our Quality Control lab.
Tell us the media, working pressure, and standard (DIN/CGA/ISO or your own spec) — our engineers confirm casting or forging is the right call and send an itemized quote.
Accepted: STEP · IGES · DWG · DXF · PDF · photos with dimensions
