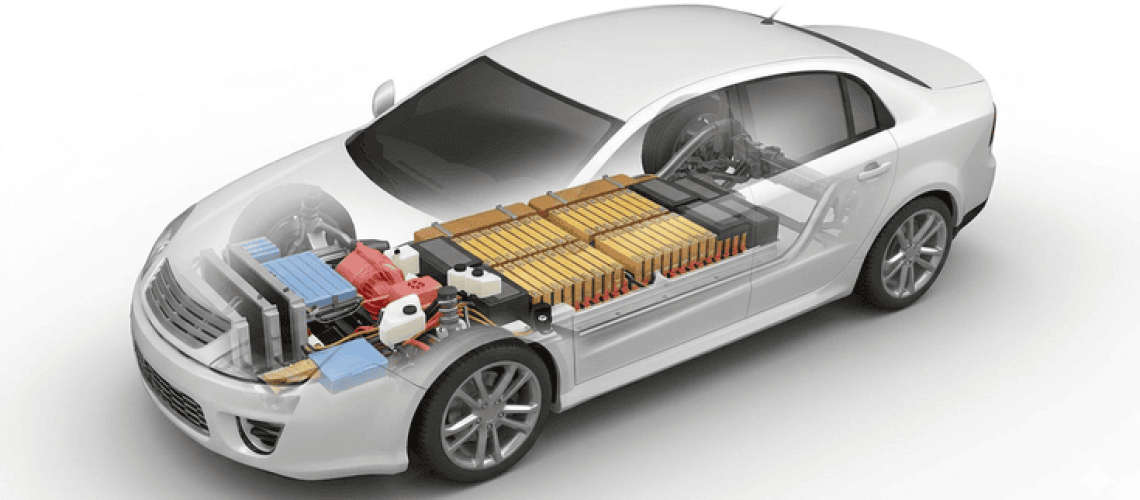

The global aluminum die casting market is projected to reach $89.3 billion in 2026, growing at a CAGR of 6.0% through 2033. Electric vehicles are the primary driver—each new EV platform uses 30–50% more aluminum castings than comparable ICE vehicles, from battery tray housings and motor end covers to structural cross-members and thermal management components.
But as OEMs and Tier 1 suppliers ramp casting volumes to meet EV production targets, a persistent problem resurfaces: casting defects. Porosity, shrinkage cavities, cold shuts, and hot tears don’t just cause scrap—they delay PPAP approvals, trigger field recalls, and erode trust between buyers and foundries.
The Four Defects That Cost EV Programs the Most
Across aluminum high-pressure die casting (HPDC) and gravity casting operations, four defect categories account for the majority of quality failures in automotive-grade components:
1. Gas Porosity
Trapped hydrogen and air during solidification create internal voids that compromise pressure tightness and fatigue strength. In motor housings and battery cooling plates, even microscopic porosity can lead to coolant leakage—a catastrophic failure mode in EV applications.
Root causes: insufficient melt degassing, high pouring speed, inadequate venting in the die, or moisture in mold release agents.
2. Shrinkage Cavities
As aluminum solidifies, volumetric contraction creates internal voids in thick sections or areas with poor directional solidification. Structural castings like suspension knuckles and subframe brackets are particularly vulnerable because their load-bearing zones often coincide with thermal hotspots.
Root causes: improper riser design, non-uniform wall thickness, inadequate cooling channel layout in the die, or insufficient squeeze pressure during HPDC.
3. Cold Shuts
When two flow fronts of molten aluminum meet but fail to fuse completely, a visible seam line forms on the casting surface. In thin-walled components like heat sinks and electronic enclosures, cold shuts create stress concentration points that crack under thermal cycling.
Root causes: low melt temperature, slow injection speed, excessive die temperature gradients, or poor gating system design.
4. Hot Tears
During the final stages of solidification, thermal contraction stresses exceed the alloy’s ductility at elevated temperatures, creating cracks along section transitions or near cores. Hot tears are especially common in aluminum investment castings and sand castings with complex internal geometries.
Root causes: constrained contraction due to core or mold rigidity, abrupt section changes, or alloy chemistry outside specification (particularly elevated iron content in aluminum-silicon alloys).
A Defect Prevention Framework That Works at Production Scale
Reducing casting defect rates isn’t about any single silver bullet. It requires a systematic approach that spans the entire process chain—from alloy selection to final inspection. Here is what proven foundries implement:
Step 1: DFM and Simulation Before Tooling
Mold flow analysis and solidification simulation identify potential defect zones before steel is cut. Proper wall thickness uniformity, strategic rib placement, and optimized gating/overflow design prevent most porosity and shrinkage issues at the design stage.
Step 2: Melt Quality Control
Hydrogen levels in molten aluminum must be monitored and controlled through rotary degassing and flux treatment. Spectroscopic analysis of each melt batch verifies alloy chemistry against specifications—especially silicon, magnesium, copper, and iron content. A controlled metrology laboratory at 20°C ensures measurement accuracy for all incoming material verification.
Step 3: Process Parameter Optimization
Injection speed, intensification pressure, die temperature profiles, and cycle time must be tuned for each part geometry. Design of Experiments (DOE) methodology systematically identifies the optimal parameter window. For gravity casting and sand casting, pouring temperature control and mold preheat consistency are equally critical.
Step 4: In-Process and Final Inspection
X-ray NDT detects internal porosity and shrinkage that visual inspection misses. CMM measurement verifies dimensional tolerances against engineering drawings. Material testing (tensile, hardness, microstructure) confirms mechanical properties meet specification. For automotive components under IATF 16949, every inspection result must be traceable to the original material lot and production parameters.
What OEMs and Tier 1 Buyers Should Verify in a Casting Supplier
When qualifying a foundry for EV or automotive casting programs, buyers should confirm these capabilities before committing to production:
✅ ISO 9001:2015 and IATF 16949 certified quality management system with documented process controls and corrective action procedures
✅ In-house mold design and manufacturing capability with mold flow analysis and DFM review before tooling commitment
✅ Controlled metrology laboratory (20°C environment) with CMM, optical measurement, and X-ray NDT equipment
✅ Spectroscopic melt analysis for every production batch with documented alloy chemistry records
✅ Full material traceability from raw ingot receipt through machining and surface treatment to final shipment
✅ In-house CNC machining and surface treatment to deliver finished components, not just raw castings
✅ Proven production capacity with monthly output exceeding 150,000 castings and a dedicated engineering team of 60+ personnel
✅ Experience across multiple casting processes—aluminum die casting, gravity casting, sand casting, and investment casting—to match the optimal process to each component’s requirements
How Renyi Castings Addresses the Defect Challenge
Founded in 2005 in Ningbo, China, Renyi Castings has spent 20 years building a defect prevention system that integrates every stage of the casting process under one roof:
Process versatility. Six core processes—aluminum die casting, aluminum gravity casting, sand casting, investment casting, precision forging, and large heavy-duty components—ensure the right manufacturing method is selected for each application, rather than forcing every part through a single process.
End-to-end capability. From initial mold design and CNC machining through surface treatment and final assembly, Renyi Castings controls every step. This eliminates the quality gaps that occur when castings are passed between multiple vendors.
Lab-grade quality control. A 20°C恒温 metrology laboratory houses a Hitachi OES spectrometer for melt chemistry verification, an 8kW X-ray NDT system for internal defect detection, CMM and VMS for dimensional inspection, and a 100kN material testing machine for mechanical property validation.
Automotive-grade certification. ISO 9001:2015 and IATF 16949 certifications govern every process, from incoming inspection to final shipment. Material traceability, process documentation, and corrective action records are maintained for every production lot.
Scale with precision. With a 60-person team and monthly production capacity exceeding 150,000 castings, Renyi Castings serves automotive, aerospace, medical, industrial, LED, telecom, marine, construction, energy, and agriculture markets worldwide.
Bottom Line for EV Program Managers
As EV production volumes accelerate through 2026 and beyond, aluminum casting defect prevention is no longer a foundry problem—it is a program-level risk that affects launch timelines, warranty costs, and brand reputation. Choosing a foundry partner with integrated process control, certified quality systems, and proven defect reduction experience is one of the highest-leverage decisions an EV program manager can make.
Need a casting partner that treats defect prevention as a system, not an afterthought? Contact Renyi Castings to discuss your next program.
